Application of INVT GD5000 series VFD for Seprator fan1 and Separator fan 2, chettinad cement(kallur) , Telangana ,India.

Summary

This paper introduces the application of INVT GD5000 series medium-voltage four-quadrant vector VFD in the seprator fan 1 and seprator fan 2 drive chettinad cement (kallur), Telangana, India.

Key words

GD5000, seprator fan , Medium-voltage Variable-frequency Drive,chettinad cement (kallur), Telangana, India.

I. Introduction

The separator main fan creates a continuous circulating air current into which the distribution plate disperses the separator feed.

The guide vane can make the flow and powder particles rotate, pre-grade, and

capture the coarse particles thrown out by the rotor, and also make the speed of the flow evenly distributed on the height of the whole rotor.

II. Original control system analysis

Before the reconstruction of chettinad cement , the old rotor resistance method was used . However, there are the following disadvantages:

1.The rotor resistance control method is that the efficiency is low because of the additional losses present in the resistors connected within the rotor circuit.

2.The efficiency is greatly reduced at low speeds because of the higher value of the slip.

3.his starter can only be used for starting a slip ring induction motor.

4.It needs frequent maintenance due to presence of slip rings and carbon brushes.

Motor parameter

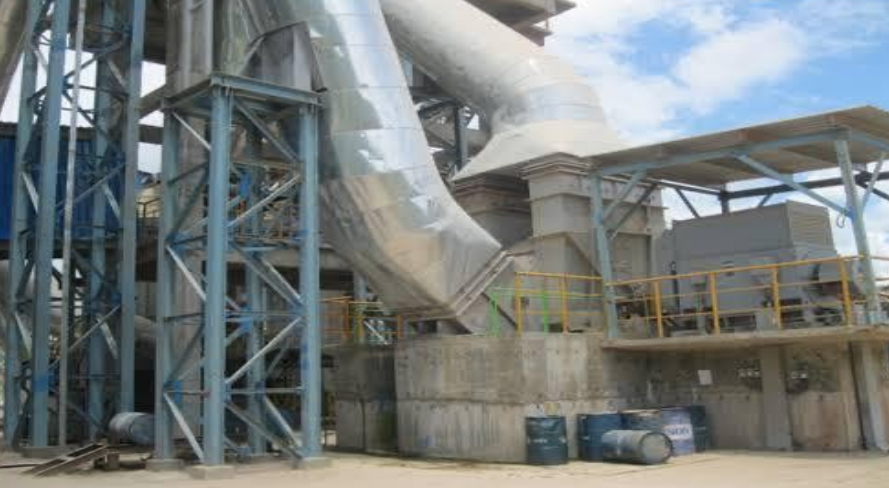

Project load photo

III. Project reform

VFD Selection

The project adopts GD5000 series MVD independently developed and produced by Shenzhen INVT Electric Co., Ltd. . The MVD is a medium voltage variable

frequency speed regulating device of vector control H bridge series multi-level technology. The original old system can still be used at present, so it will not be dismantled temporarily, and will be reserved as the backup system.

IV. VFD principle

INVT GD5000 series VFD is a high-tech energy-saving product, which adopts advanced IGBT power unit multi-level technology, digital control technology and SPWM pulse width modulation technology. It has the advantages of high power factor, high efficiency, energy saving, high stability, etc, and has the rated power energy feedback ability.

Each phase of the VFD is composed of six power units in series, and the three-phase Y is connected to the output. The output adopts the SPWM wave

superimposed by 9 power units in 11 kv of each phase to form high-quality output waveform, which is supplied to the motor.

Optical fiber communication is adopted between control cabinet, power unit cabinet, transformer cabinet and bypass cabinet to prevent electromagnetic

interference. Achieve complete isolation of high and low voltage, improve safety.

The input side of the power unit is composed of fuse, rectifier and filter parts, and the rectifier part is composed of six IGBT. The inverter consists of four IGBT H bridge inverter outputs, and the motor is driven by the unit series.

V. application advantages

High reliability

The GD5000 series inverters of INVT have perfect protection functions, such as overcurrent, overvoltage, overload, stall and other protection functions.

Small start-up current

The impact current in the process of starting and accelerating is small, and the maximum starting current in the process of accelerating does not exceed 1.9 times of the rated current.

Wide range of speed regulation

VFD system belongs to the stepless speed regulation, the motor control in the process of acceleration and deceleration is stable, The speed regulation is soft.

Production efficiency is high

The stability of the INVT GD5000 series VFD is high, and the speed does not change with the change of the load. The VFD can control the motor to run stably at a given speed.

VI. Complimentary Close

The practice has proved that the in seprator fans runs well after the technical transformation of VFD, the energy consumption of the fan of seprator fans is

reduced and the power factor of the power grid is also improved. Facts have proved that the Medium Voltage VFD has superior product performance, in the cement

industry in the energy saving transformation application can create huge economic benefits, in the energy saving and environmental protection has played an

important role. It can completely replace the traditional control mode and has very high promotion value.
