XN12048-MAX Off-Grid Inverter

INVT XN12048-MAX Off-Grid Inverter delivers reliable power for small commercial and industrial applications and multi-household systems in off-grid or weak-grid areas. Featuring dual MPPTs, 27A PV string current, a 60–450V MPPT voltage range, and a built-in 160A solar charger, it supports flexible PV configurations with up to 99.5% charging efficiency. Compatible with lithium and lead-acid batteries, it supports parallel operation for scalable off-grid power systems. With 2× peak power output, seamless switching, and comprehensive electrical protections, it ensures dependable performance even in harsh environments.

Inquiry

Facebook Twitter Google+ LinkedIn

Features
Specification
Application
Download

Reliable Power
• 2× peak output to start high-power loads
• Seamless switching for continuous power
• Pure sine wave output for commercial and industrial loads

Efficient Solar Charging
• Dual MPPTs with 27A PV string current
• Built-in 160A solar charger
• Up to 99.5% PV charging efficiency

Flexible Compatibility
• Wide 60–450V MPPT range
• Supports lithium and lead-acid batteries
• Parallel operation for scalable off-grid microgrids

Dependable Protection
• Multiple electrical protections
• Reliable operation at high altitudes
• Robust protection for hot, dusty and salt spray environments

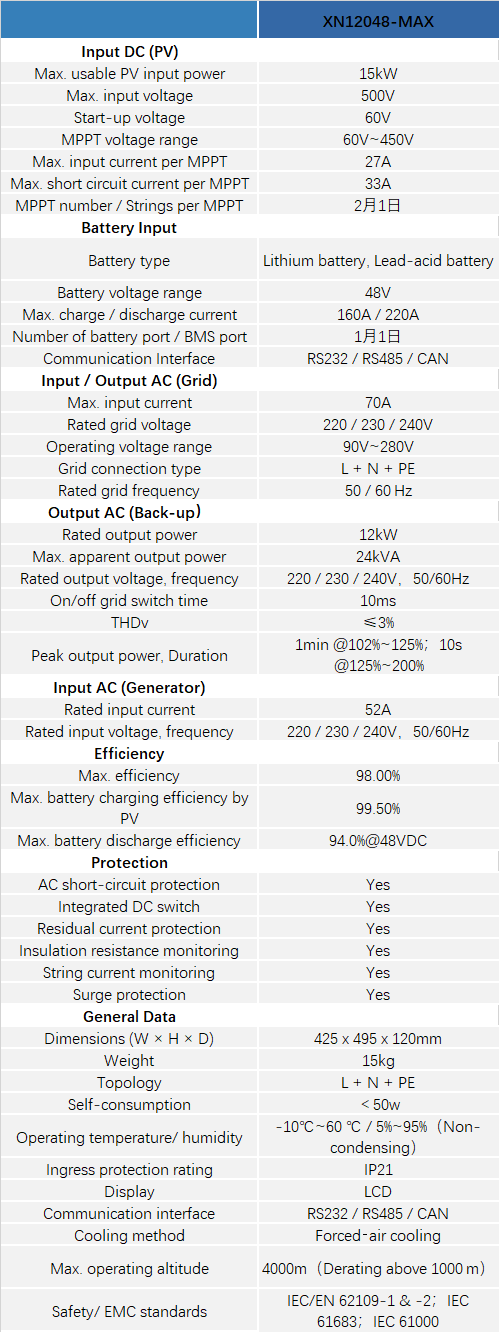

Specification:
