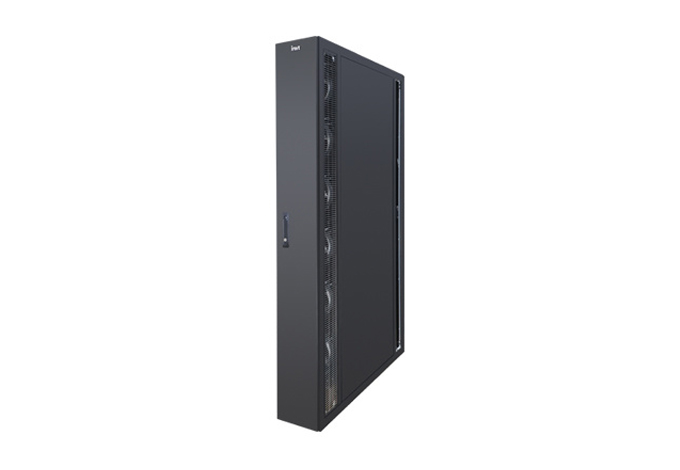

VCR Series In-row Precision Cooling System (12.5-60kW)

1. High reliability
● Adopting variable frequency scroll compressor, excellent resistance to liquid impact and lower noise.
● Highly reliable full frequency conversion control, starting current less than rated current and lower impact of power grid.
● Adopting two stage evaporator, add water tray in the middle, effectively prevent blowing water.
● Intelligent detection of supply voltage, frequency and three-phase imbalance.
● Adopting high-quality components that are strictly tested and certified.

● High strength structure design could ensure solidification and reliability.

2. High efficiency and energy saving
● Accurate control of temperature and humidity.
● Adopting variable frequency scroll compressor that has 20%~100% dynamic adjustment of cooling capacity output.
● Adopting EC Backward Centrifugal Fan, adjusts the speed output according to the real-time thermal load change.
● Adopting electronic expansion valve that has fast response speed and precise flow adjustment.
● Full frequency conversion design, intelligent control cooling capacity and air volume output on demand to achieve efficient operation.
● High return air temperature design improves cooling efficiency.

3.Diversified configuration
● High refrigeration density, the max refrigeration capacity of the full cabinet is 60kW, max cooling capacity of half cabinet is 35kW.
● Standard electrode humidifier, support optional wet film humidifier.
● Optional delivery style grid to meet left and right air delivery needs.

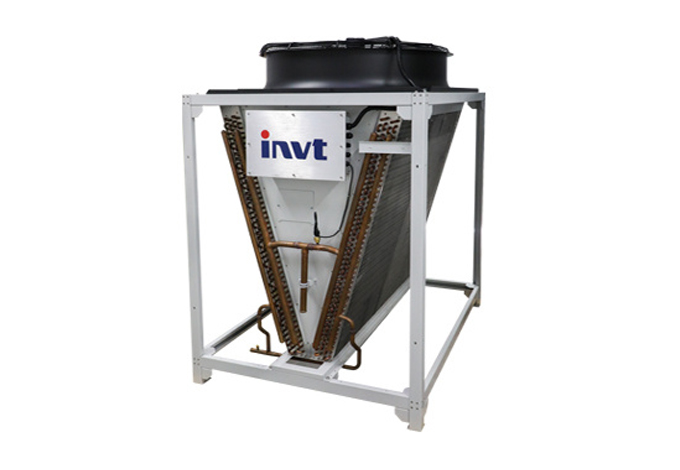

● Optional fluorine pump natural cooling module to make full use of free natural cooling source.
● Optional dual power input.

4. Intelligent management
● Using 7-inch color capacitive touch screen.
● Support graphic status and temperature and humidity curve display.
● Support 64 units for CAN communication networking.
● 10 temperature sensors can be connected.
● Standard Rs485 interface, support optional SNMP interface.
● Three-level password protection, hierarchical authorization management.
● Multiple intelligent control modes.
