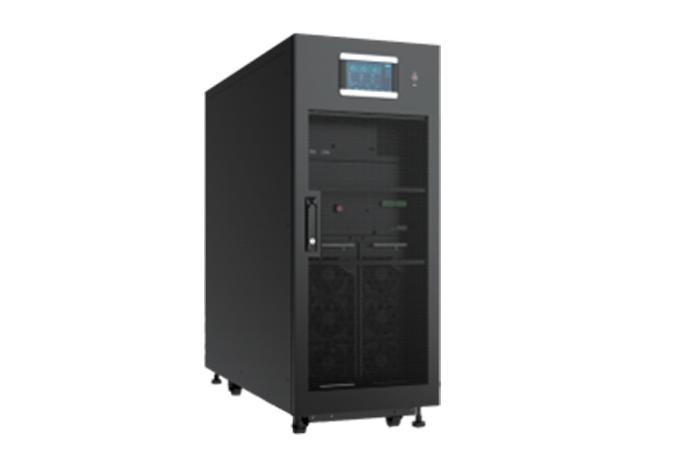

HTD33 Series Tower Online UPS 120-200kVA (380V/400V/415V)

HTD33 series high-performance UPS adopts double-conversion online design and DSP full digital control. High input power factor and low harmonic distortion ensure the greenness and environmental protection of the product. The extremely high overall machine efficiency ensures that the system can achieve energy saving while outputting pure sine waves. Provide ideal, uninterrupted high-quality power for computer equipment, communication systems and data rooms.

Inquiry

Facebook Twitter Google+ LinkedIn

Features

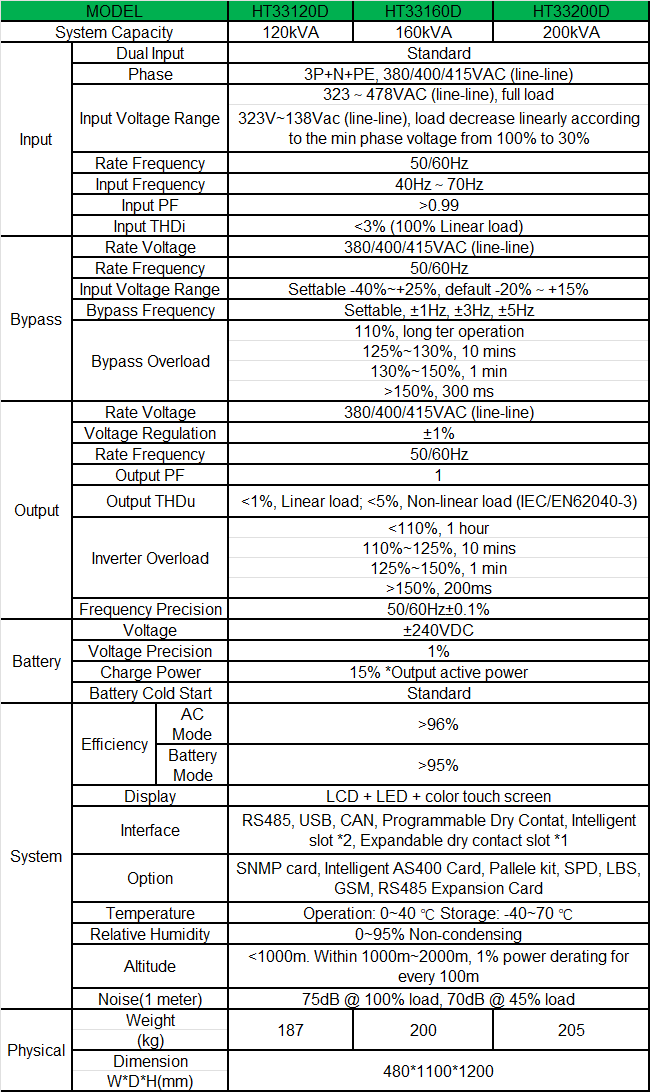

Specification
Application
Download

* High efficiency, up to 96%.

* High input PF＞0.99; Input current THDi＜3%.
* Multi-protection, over-temperature protection with 8 sensors,over-load,battery under voltage,fan failures,short-circuit.
* Intelligent battery management, support lithium battery.
* Supports multiple languages, Simplified Chinese, Traditional Chinese, English, Russian, Italian, Korean, Portuguese, Spanish, German, Polish, French, Turkish, Czech, Serbian.
* High power density.
* Full front maintenance, supports up and bottom cable entry methods. Save installation space.
* Modular design of subsystem, convenient for on site maintenance.
* Friendly operation interface, equipped with large-screen LCD touch screen and control keyboard.

* Rich fault records and large-capacity historical log storage space up to 2000.
