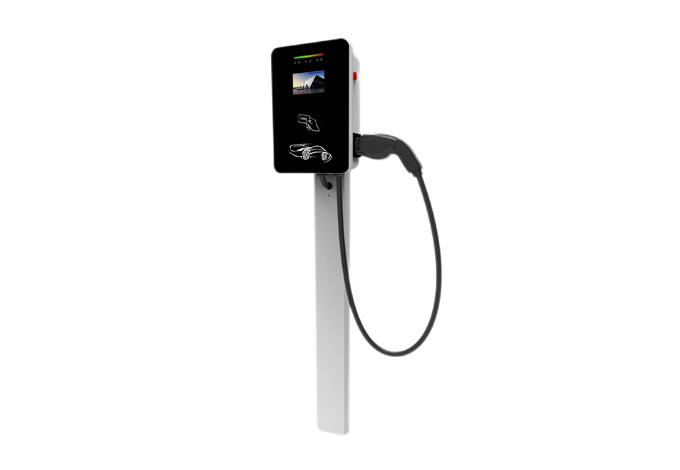

EVC16 Series EV AC Charger

INVT EVC16 series EV AC Charger, with power ratings of 7 kW, 11 kW and 22 kW, is suitable for different types of vehicles. Fulfilling the highest quality standards, the CE certified electric car charger can meet the different needs of customers, such as household EV Charger, underground parking, and special charging station (indoors and outdoors). Besides, it features simple and robust design, easy to install, easy to use, and competitive price. And the electric vehicle charger also features multiple protection functions, which can effectively deal with various emergencies and ensure safe charging.
  • Features
  • Specification
  • Application
  • Download

1. Standard 5 inch HMI user-friendly, modern and stylish appearance design

2. IEC 62196-2, Type 2 plug

3. RFID card reader for user authentication

4. Support Ethernet, Wifi, 4G/5G, OCPP 1.6

5. Support wall-mounting and pole-mounting

6. Multiple protection function, ensure safety running

7. Intelligent operation and cost saving

Model no.EVC16-AW7KGP1LEVC16-AW11KGP1LEVC16-AW22KGP1L
          Input &   Output
Input voltage1 AC 230V±10%3AC 400V±10%
Input   frequency50/60Hz
Ouput voltage1 AC 230V±10%3 AC 400VAC±10%
Max. output   power7kW11kW22kW
Max. output   current32A*116A*332A*3
Charging   interface typeIEC 62196-2016  AC Type2
Connection   typePlug
Cable length5m
Number of   connection1
             Protection
Over voltage   protectionYes
Under voltage   protectionYes
Over load   protectionYes
Short circuit   protectionYes
Earth leakage   protectionYes
Over-temp   protectionYes
Lightning   protectionYes
    Function &   Accessory
CommunicationEthernet/WIFI/4G/OCPP 1.6
LCD5 inch HMI
RCDType A
Supported   paymentRFID/Internet
LED indicatorYes
Emergency stop   buttonYes
Intelligent   power adjustmentYes
   Working Environment
IP GradeIP54
Operating   temperature-30℃~+55
Relative   humidity95% non-condensation
Maximum   altitude2000m
Cooling modeNatural cooling
Standby power   loss5W
             Mechnical
Dimension(W/H/D)280*400*134mm(Wall   mounting)
Weight5Kg(Without bracket
              Others
CertificationCE


INVT EV AC Charger
