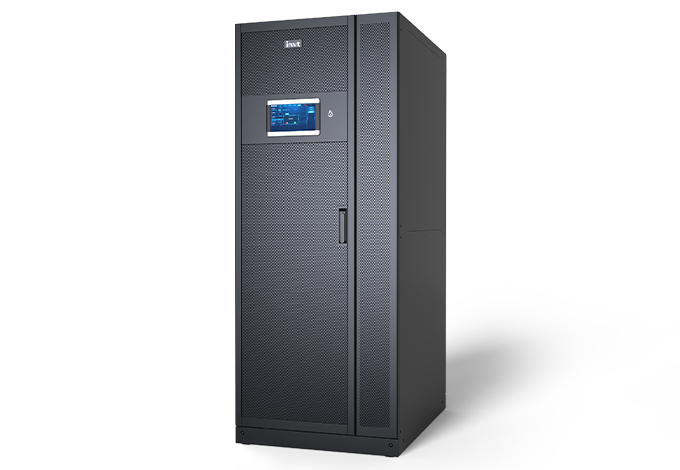

RM Series 60-600kVA Modular Online UPS (380V/400V/415V)

● High efficiency, up to 97%
● Support Lithium battery
● Intelligent staggering power consumption, become more flexible and save more energy
● Double side DC-DC topology platform, support charging power reaching 30%
● High power density
● Battery neutral-free design, achieve various battery numbers and horizontal DC voltage
● Friendly interface with 10" touch color LCD with graphic display, intuitive information and easier to operate
● Modular design, up to 30 power modules in parallel online hot-swappable N+X redundancy

Bypass Monitoring Module
This series are equipped with the bypass and monitoring module full of intelligent slots, communication interface, battery cold start buttons and adequate dry contacts. With these various ports, it can satisfy users a convenient data transfer service, provide comprehensive monitoring.
● Diverse communication interface and multiple standard part such as RS485, USB, CAN and programmable dry contacts.
● Convenient SD card slot, easy for software burning and version upgrade after transferring to maintenance mode.
● Isolation between LCD and monitoring board, connect them by network cable, signifificantly improve the reliability and prevent the damage of the DSP.

Power Module

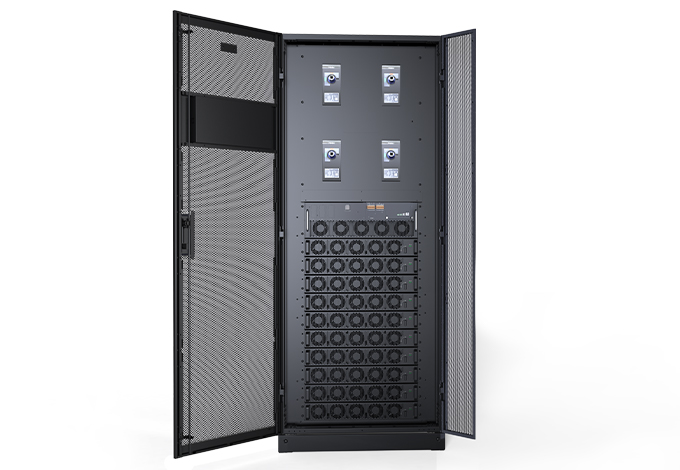

The cabinet of RM600/60D contains 10 power modules, each of them is 60kVA power capacity in 2U height. With the knob on the front panel, the UPS can achieve hot-swappable without power outage of the load, make it available for redundancy and maintenance online.
● Modular Compact Cabinet Design contains maximum 10 slots.
● Module Status LED Indicator show the status of each power module.
● Bidirectional DC-DC converter circuit achieve 30% charger which greatly improve the system performance.
● Overall efficiency reaches 97%, the collaboration between batteries and power grid improve the UPS utilization signifificantly.
